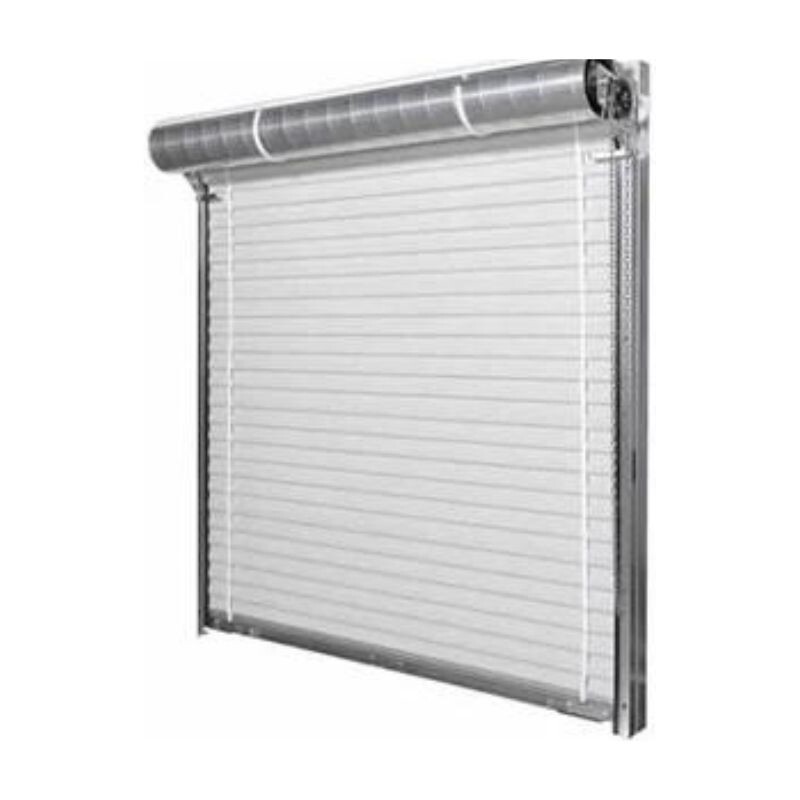

Commercial Roll Up Door Model 1000 / 1000i

The Model 1000 commercial sheet metal door is easy to install and provides tremendous value. Many components are pre-assembled and are made of high quality materials. Brackets, gears, chains, and a tensioner are all in place, which makes this door a solid investment for commercial or industrial applications. General and more specific features of the door can be found below: • A drum wheel that is 9 ½” in diameter • Maximum opening size of 12’ wide by 14’ high (168 sq.ft.) • A reduced, right-hand-only chain hoist • Push-up, hand chain, and internal electric operations

Be the first to review this product
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available

LF

Call for shipping cost to your location
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Description

Curtain

  • Grade 80 steel
  • 26-gauge galvanized corrugated steel
  • Over 30 Color Options
  • Wash coat over primer interior side
  • Super Durable Polyester paint coatings, which are corrosion resistant
  • 40-year film integrity warranty — up to 30-year chalk and fade
  • Flexible nylon wear strips

Bottom Bar

  • 2” by 1 ½” galvanized angle
  • 24 gauge acrylic-coated galvalumed roll formed steel
  • Stainless steel bolts
  • Bulb astragal (Durometer 75)

Axle/Torque Tube

  • Oil tempered torsion springs conforming to ASTM A229
  • Low friction, grease-filled steel ball bearings staked in each drum
  • 18-gauge, 9 ½” diameter galvanized drum
  • 26 gauge spiral torque tubing that houses axle assembly

Guide

  • Vinyl guide wear strip
  • 16 gauge galvanized
  • Bolt-on head stop ¼” thick steel
  • Pre-punched for lock
  • 2 ¼” guide depth
  • Universal jamb mount

Hardware

  • Bottom bar mounted 12 gauge slide locks – 2 per door
  • Bottom bar mounted 16 gauge step plate – 2 per door
  • Ratchet tensioner device
  • 12 gauge door mounting brackets

Tips

1100 Drawing
