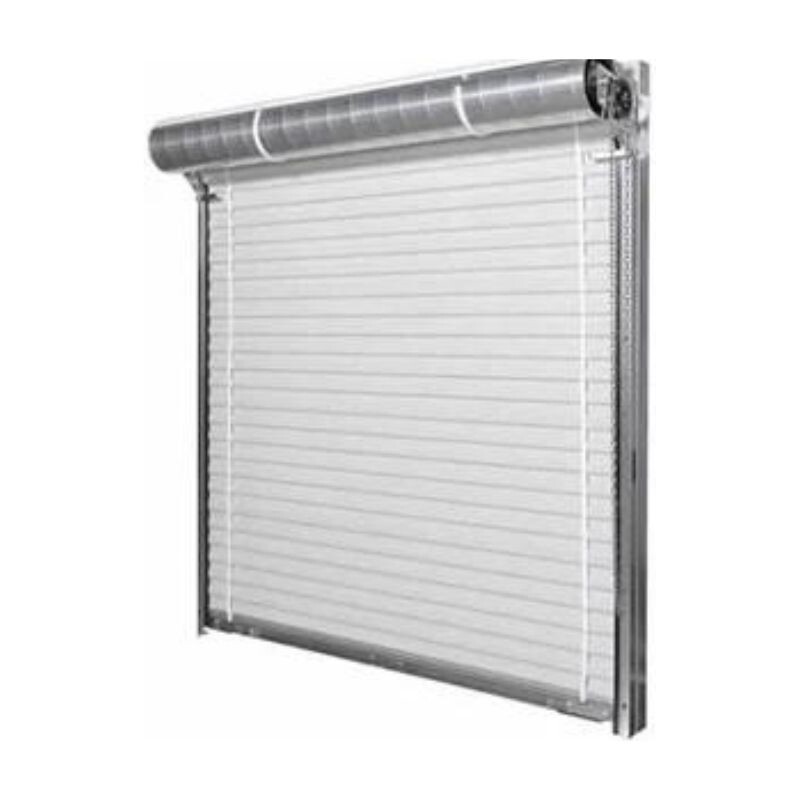

Commercial Roll-Up Door Model 1100 / 1100i

The Model 1100 series is a great economical investment for commercial usage. Complete with pre-assembled brackets and tensioner, the Model 1100 metal roll up door is easy to install and will last for years. Wind load rated and able to withstand strong forces, the Model 1100 steel roll up door is ideal for coastal locations or in areas that receive extreme weather. View all of the door’s features and measurements below: • Pre-assembled for time and money savings • Utilizes 9 ½” diameter drum wheel • Maximum opening size of 10’ wide x 14’ high (140 sq.ft.) • Push-up, hand chain and internal electric operations • Reduced drive chain hoist is right hand only

  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available

LF

Call for shipping cost to your location
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Description

Windload

  • Rated +24.4 PSF and -27.0 PSF for opening widths through 8’8”
  • Rated +19.4 PSF and -22.7 PSF for opening widths over 8’8” through 10’0”
  • Designed in accordance with ASCE 7-02 and the Florida Building Code 2004 with 2006 Supplement and the International Building Code 2003

Curtain

  • 26-gauge galvanized corrugated steel
  • Grade 80 steel
  • Over 30 Color Options
  • Super Durable Polyester paint coatings, which are corrosion resistant
  • Wash coat over primer interior side

Bottom Bar

  • 24 gauge acrylic-coated galvalumed roll formed steel
  • 2” x 1 ½” galvanized angle
  • Bulb astragal (Durometer 75)
  • Stainless steel bolts

Axle/Torque Tube

  • 18-gauge, 9 ½” diameter galvanized drum
  • Low friction, grease-filled steel ball bearings staked in each drum
  • 26 gauge spiral torque tubing that houses axle assembly

Guides

  • 16 gauge galvanized
  • Vinyl guide wear strip
  • Bolt on head stop ¼” thick steel
  • 2 ¼” guide depth
  • Pre-punched for lock
  • Universal jamb mount

Hardware

  • Bottom bar mounted 12 gauge slide locks – 2 per door
  • Bottom bar mounted 16 gauge step plate – 2 per door
  • 12 gauge door mounting brackets
  • Ratchet tensioner device
