Commercial Roll Up Door Model 3652 / 3652i

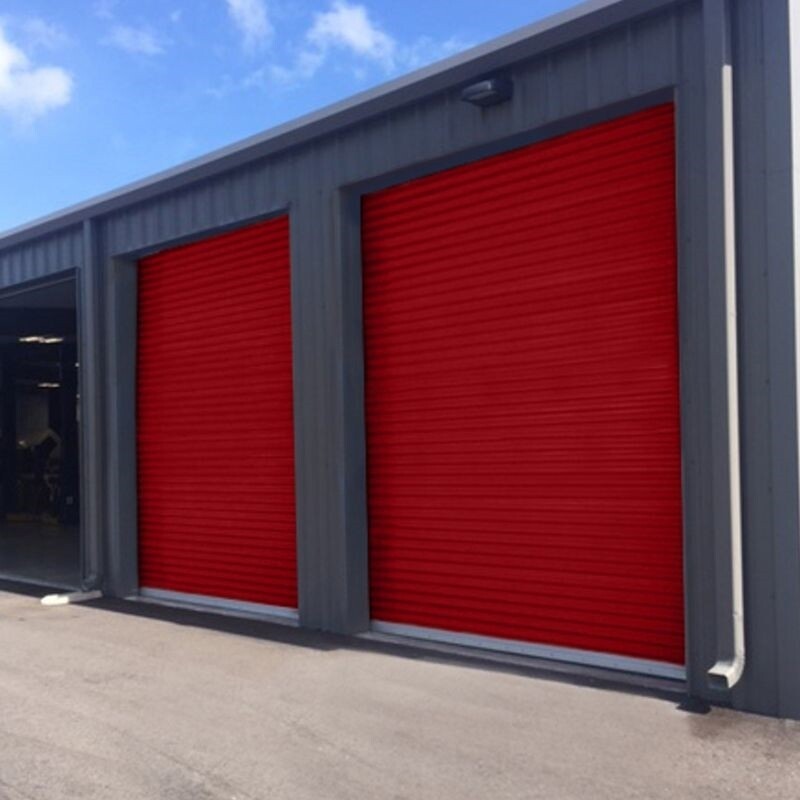

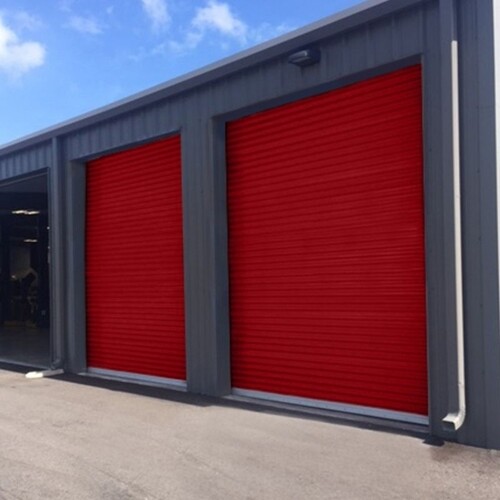

Commercial Steel Roll Up Greenhouse Door 3652 is our new nylon windlock certified wind load rated roll-up sheet door. The nylon windlock will offer an easier installation process with a more forgiving guide set, as well as a smoother and quieter operation. Most parts come pre-assembled, ensuring that installation is quick and easy. This greenhouse or commercial building door is made of durable, long-lasting materials, making it ideal for retail applications, commercial and industrial properties, and warehouses in high wind areas. • Designed and tested to meet wind load requirements of the International Building Code and Florida Building Code (FL14425) • Utilizes a 12” drum wheel • The maximum opening size of 18’ wide x 20 ’ high (360 sq.ft.) • Push-up, hand chain, and electric operations • PSF Ratings: +36 PSF and -40 PSF for opening widths of 12’ • Ratings vary for other opening widths; consult the factory

Be the first to review this product
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available

LF

Call for shipping cost to your location
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Description

Curtain

  • 26-gauge galvanized corrugated steel
  • Grade 80 galvanized steel
  • Over 30 Color Options
  • Super Durable polyester paint coatings, which are corrosion resistant
  • Wash coat over primer interior side
  • 40-year film integrity warranty — up to 30-year chalk and fade
  • Flexible nylon wear strips
  • Nylon windlock

Bottom Bar

  • 24 gauge acrylic-coated galvalume roll-formed steel
  • 2” x 1 ½” galvanized angle
  • Bulb astragal (Durometer 75)
  • Stainless steel nuts and bolts

Axle/Torque Tube

  • 16-gauge, 12” diameter galvanized drum
  • Low friction, grease-filled steel ball bearings staked in each drum
  • 26 gauge spiral torque tubing that houses axle assembly

Guides

  • 14 gauge galvanized steel guide
  • Bolt-on head stop ¼” thick steel
  • 2″ guide depth
  • Pre-punched for lock and attachment bolts
  • Universal jamb mount

Hardware

  • Bottom bar-mounted 10 gauge slide locks – 2 per door
  • Bottom bar-mounted 16 gauge step plate – 2 per door
  • 12 gauge door mounting brackets
  • 1-5/16” tension holding device

Tips

3625 Drawing3625 Drawing

Color Chart   Color Chart
