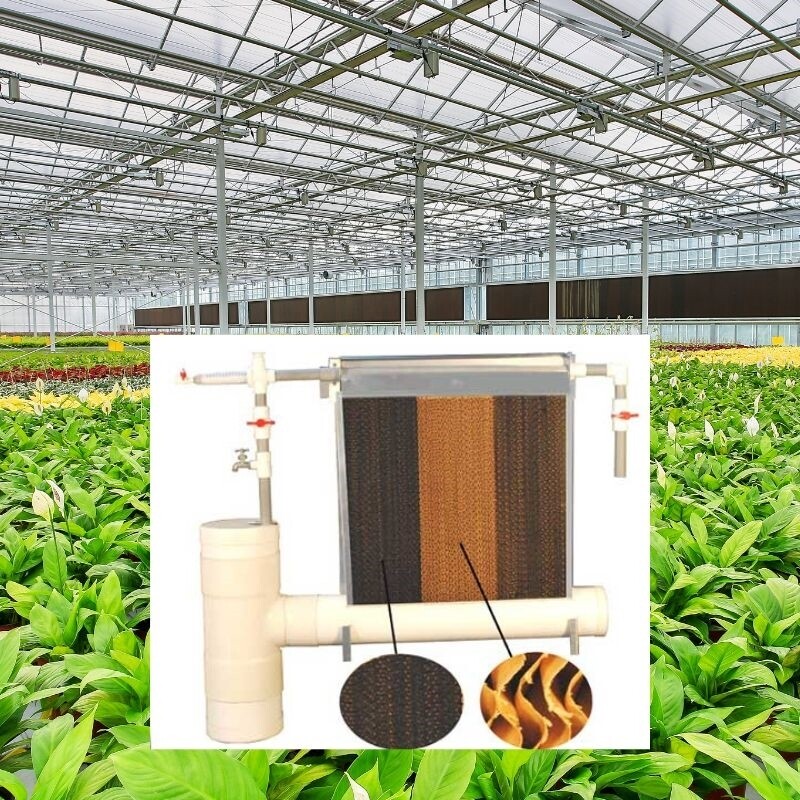

4" PVC Evap Complete System

Description

• System length 5' to 110' - System height 2' to 6.'
• Completely self-contained
• PVC trough and sump included
• Available in Standard Top (system includes pipe cover/spray deflector) or Open Top (for easy access to distribution pipe) designs
• Multiple pump designs are available. For longer systems, consult your American Coolair representative.
• Tall Pad Supports (Required on 6 inches Systems 60" & 72 ", 84" & 96" Tall)

Additional Information

Installation Instructions -  PVC Cooling System

Tips

Pump and Sump The pumps are sized for the system to supply at least 1/2 gallon of water per minute per linear foot of the pad system. The integral PVC sump and trough hold an adequate water supply for systems up to 110’ long and 6’ high.

The water distribution systems for the PVC and Doublestack designs feature PVC pipe with metered outlet holes, a water return trough, a water filter, an automatic supply valve, and a volume control valve. All systems include top and bottom pad support material, water distribution pipe cover (except for Open Top systems), and all necessary fasteners.
