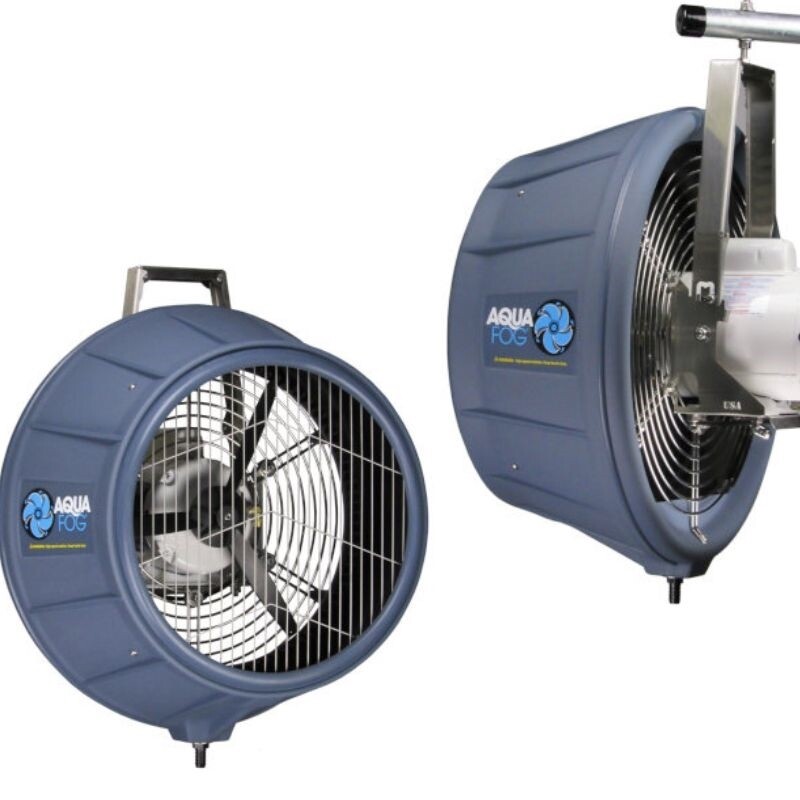

Aquafog GT500 Direct Feed Fog Fan

Aquafog GT500, Direct Feed Fogger Fan, is a simple-to-install hanging fan perfect for indoor humidification, evaporative cooling, and chemical fogging applications. The components of this device are UV stabilized, making them suitable for outdoor use as well.

Free shipping
$0.00

Description

This centrifugal atomizer utilizes a rear-feed blade system to create billions of tiny fog-like particles that evaporate quickly. The front guard is hydrophilic, which helps to prevent floors from becoming wet. The fogging output can be adjusted and regulated using a flowmeter, and the unit can also be fed using a metering pump or gravity feed system.

Aquafog GT 500 Direct Feed has 30 feet of water line, a garden hose connector, 16 feet of drainage line, and the flowmeter panel of your choice. Units can be hung using a single U-bolt or a universal mounting bolt.

  • Up to 15 GPH
  • Energy-Efficient
  • Pivot Fogging Head
  • 115V - 15’ cord w/ plug
  • 230V - 15’ cord w/ connector
  • Arrives Fully Assembled





Additional Information

Overall Dimensions:

Diameter 21 in / 53.5 cm

Depth 17.5 in / 44.5 cm

Height 25 in / 63.5 cm

Propulsion Distance:

25-30 ft / 7.6-9.1 m

Noise @ 10 ft:

70 dB(A)

Average Particle Size:

5-10 microns @ low volume

30 microns @ high volume

CFM:

2,000

Operation:

Continuous duty capability

Energy Consumption:

1/4 HP - 3.4 amps @ 115V
1/4 HP - 1.8 amps @ 230V
1/5 HP - 2.0 amps @ 240V 50Hz

Shipping Weight:

42 lbs / 18.6 kg

Box Dimensions:

21" x 21" x 17"

53cm x 53cm x 42cm

Environment:

Endures temperatures from
31° to 160° F

Indoors / outdoors

Humidity to 100% RH

UV stabilized & impact resistan
