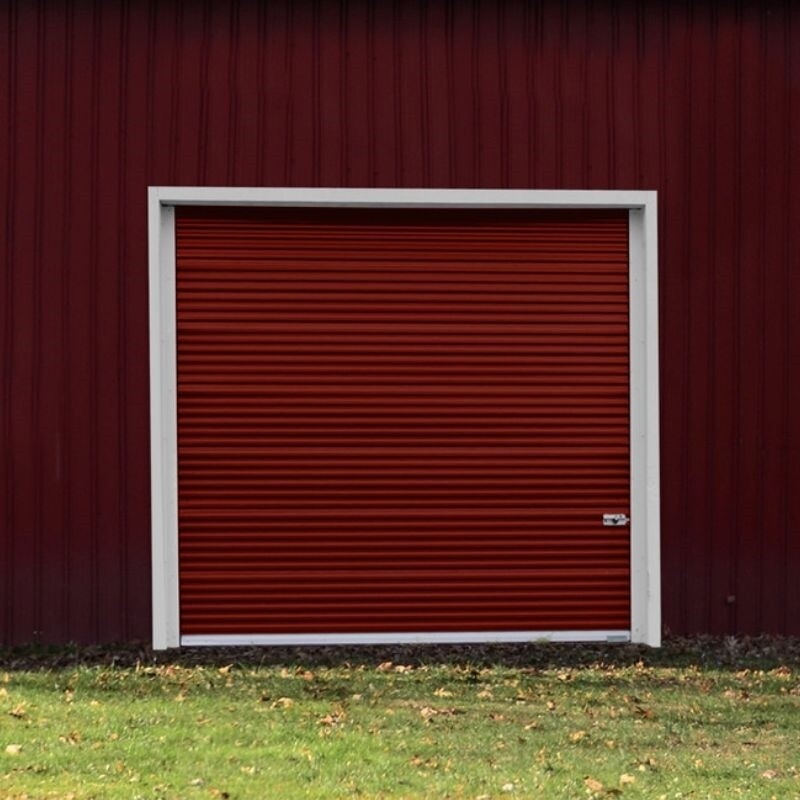

Commercial Roll Up Door Model 2000 / 2000i

Description

Curtain

• 26-gauge galvanized corrugated steel
• Grade 80 galvanized steel
• Over 30 Color Options
• Super Durable polyester paint coatings, which are corrosion resistant
• Wash coat over primer interior side
• 40-year film integrity warranty — up to 30-year chalk and fade
• Flexible nylon wear strips

Bottom Bar

• 24 gauge acrylic-coated galvalumed roll formed steel
• 2” x 1 ½” galvanized angle
• Bulb astragal (Durometer 75)
• Stainless steel nuts and bolts

Axle/Torque Tube

• 1-5/16” O.D. steel axle, 14-gauge
• Oil tempered torsion springs conforming to ASTM A229
• 16-gauge, 12” diameter galvanized drum
• Low friction, grease-filled steel ball bearings staked in each drum
• 26 gauge spiral torque tubing that houses axle assembly

Guides

• 16 gauge galvanized
• Bolt on head stop ¼” thick steel
• 2 ¼” guide depth
• Pre-punched for lock and attachment bolts
• Vinyl guide wear strip
• Universal jamb mount

Hardware

• Bottom bar mounted 10 gauge slide locks – 2 per door
• Bottom bar mounted 16 gauge step plate – 2 per door
• 12 gauge door mounting brackets
• 1-5/16” tension-holding device
