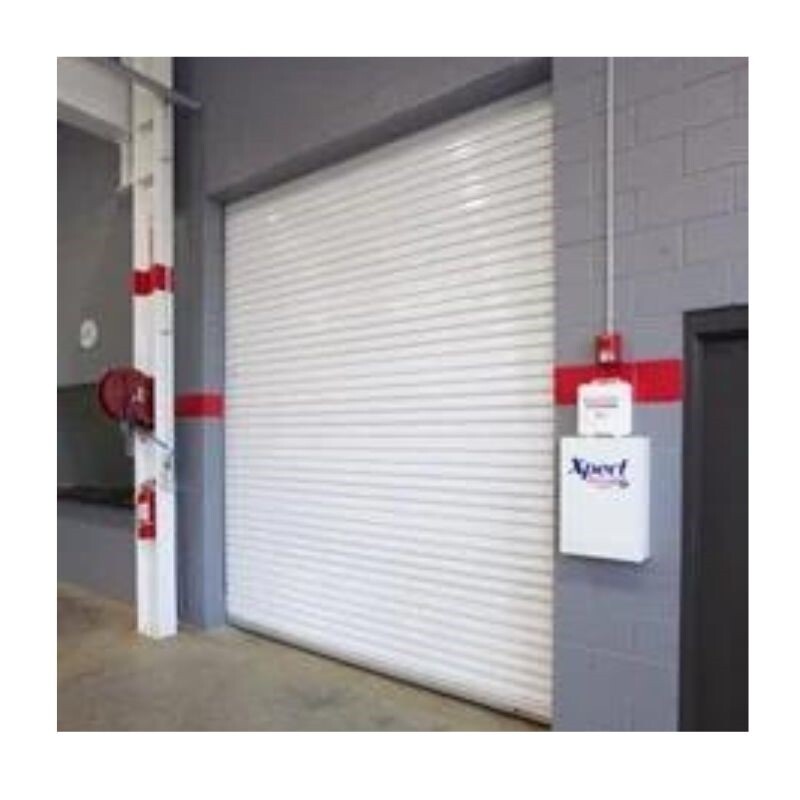

Commercial Roll Up Door Model 1950 Heavy Duty

If you are seeking a heavy duty commercial roll up door, the Model 1950 HD is the perfect fit for your needs. Our Model 1950 HD utilizes a 9 ½” drum wheel and is manufactured for frequent use. The door comes with a one year limited warranty, which ensures that you will receive a quality product. Other features and door measurements are as follows: Maximum opening size of 12’ wide x 14’ high (168 sq.ft.) Push-up, hand chain and electric operations

  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available

LF

Call for shipping cost to your location
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Description

Curtain

  • 26-gauge galvanized corrugated steel
  • Grade 80 galvanized steel
  • Over 30 Color Options
  • Super Durable polyester paint coatings, which are corrosion resistant
  • Wash coat over primer interior side
  • 40-year film integrity warranty — up to 30-year chalk and fade
  • Flexible nylon wear strips

Bottom Bar

  • 24 gauge acrylic-coated galvalumed roll formed steel
  • 2” x 1 ½” galvanized angle
  • Bulb astragal (Durometer 75)
  • Stainless steel nuts and bolts

Axle/Torque Tube

  • 16-gauge, 9 ½” diameter galvanized drum
  • Low friction, grease-filled steel ball bearings staked in each drum
  • 26 gauge spiral torque tubing that houses axle assembly

Guide

  • 12 gauge galvanized
  • Bolt on head stop ¼” thick steel
  • 2-7/8” guide depth
  • Pre-punched for lock and attachment bolts
  • Universal jamb mount

Hardware

  • Bottom bar mounted 10 gauge slide locks – 2 per door
  • Bottom bar mounted 16 gauge step plate – 2 per door
  • 16 gauge door mounting brackets
  • 1” tension holding device

Tips
