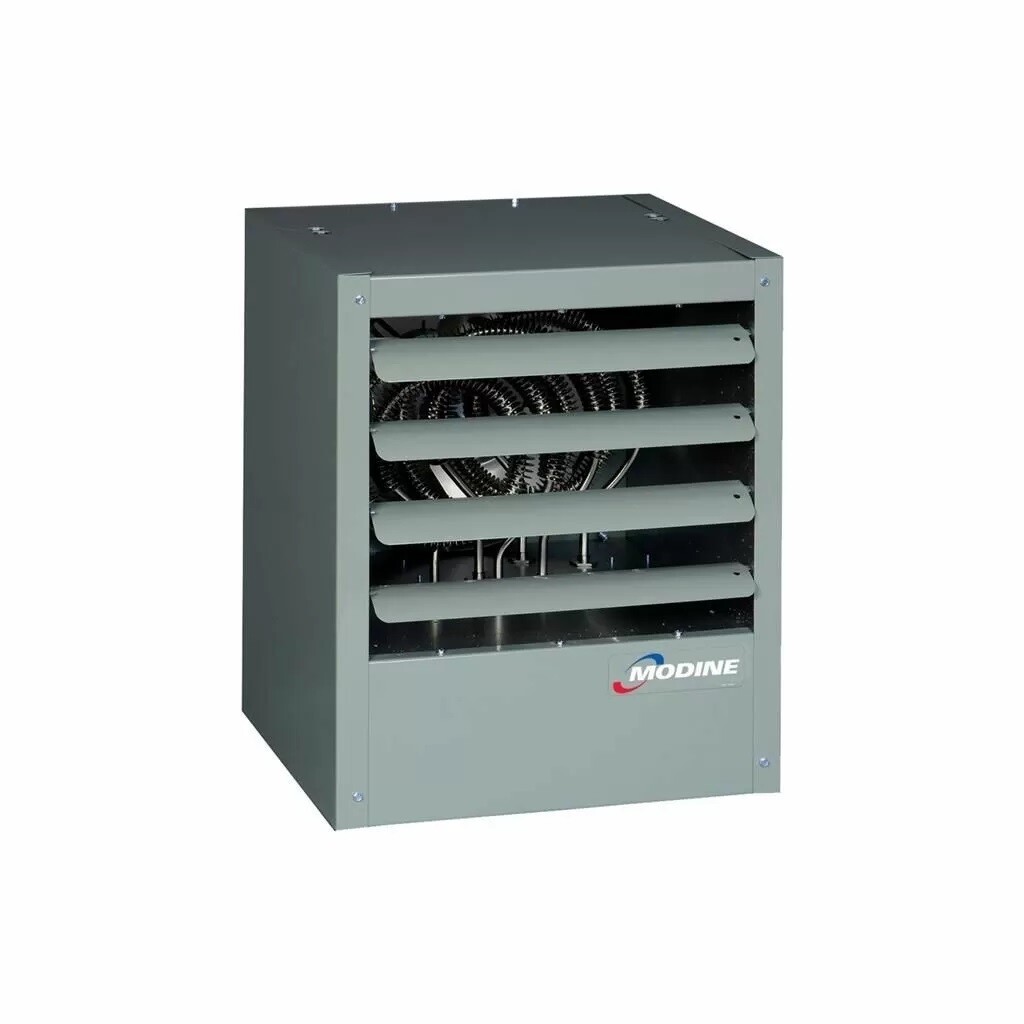

Modine HER Electric Unit Heater

Product Details

Model	Volts/Phase	KW	BTU/HR	Max. Mtg. Ht. Ft.	Temp. Rise	Amps	Weight (lbs.)
HER5011	208/1P	5.0	17,100	8'	30°	24.5	52
HER5012	240/1P	5.0	17,100	8'	30°	21.3	52
HER5031	208/3P	5.0	17,100	8'	30°	14.3	52
HER5032	240/3P	5.0	17,100	8'	30°	12.5	52
HER5033	480/3P	5.0	17,100	8'	30°	6.5	52
HER7511	208/1P	7.5	25,600	8'	45°	36.5	52
HER7512	240/1P	7.5	25,600	8'	30°	31.7	52
HER7531	208/3P	7.5	25,600	8'	45°	21.3	52
HER7532	240/3P	7.5	25,600	8'	45°	18.5	52
HER7533	480/3P	7.5	25,600	8'	45°	9.5	52
HER10011	208/1P	10.0	34,100	9'	38°	49.4	67
HER10012	240/1P	10.0	34,100	9'	38°	42.9	67
HER10031	208/3P	10.0	34,100	9'	38°	29	67
HER10032	240/3P	10.0	34,100	9'	38°	25.3	67
HER10033	480/3P	10.0	34,100	9'	38°	13.3	67
HER12531	208/3P	12.5	42,700	10'	48°	36.0	65
HER12532	240/3P	12.5	42,700	10'	48°	31.4	65
HER12533	480/3P	12.5	42,700	10'	48°	16.3	65
HER15031	208/3P	15.0	51,200	10'	57°	42.9	74
HER15032	240/3P	15.0	51,200	10'	57°	37.4	74
HER15033	480/3P	15.0	51,200	10'	57°	19.3	74
HER15031	208/3P	20.0	68,300	11'	49°	56.8	97
HER20032	240/3P	20.0	68,300	11'	49°	49.4	97
HER20033	480/3P	20.0	68,300	11'	49°	25.3	97
HER25031	208/3P	25.0	85,400	12'	61°	70.7	98
HER25032	240/3P	25.0	85,400	12'	61°	61.4	98
HER25033	480/3P	25.0	85,400	12'	61°	31.4	98
