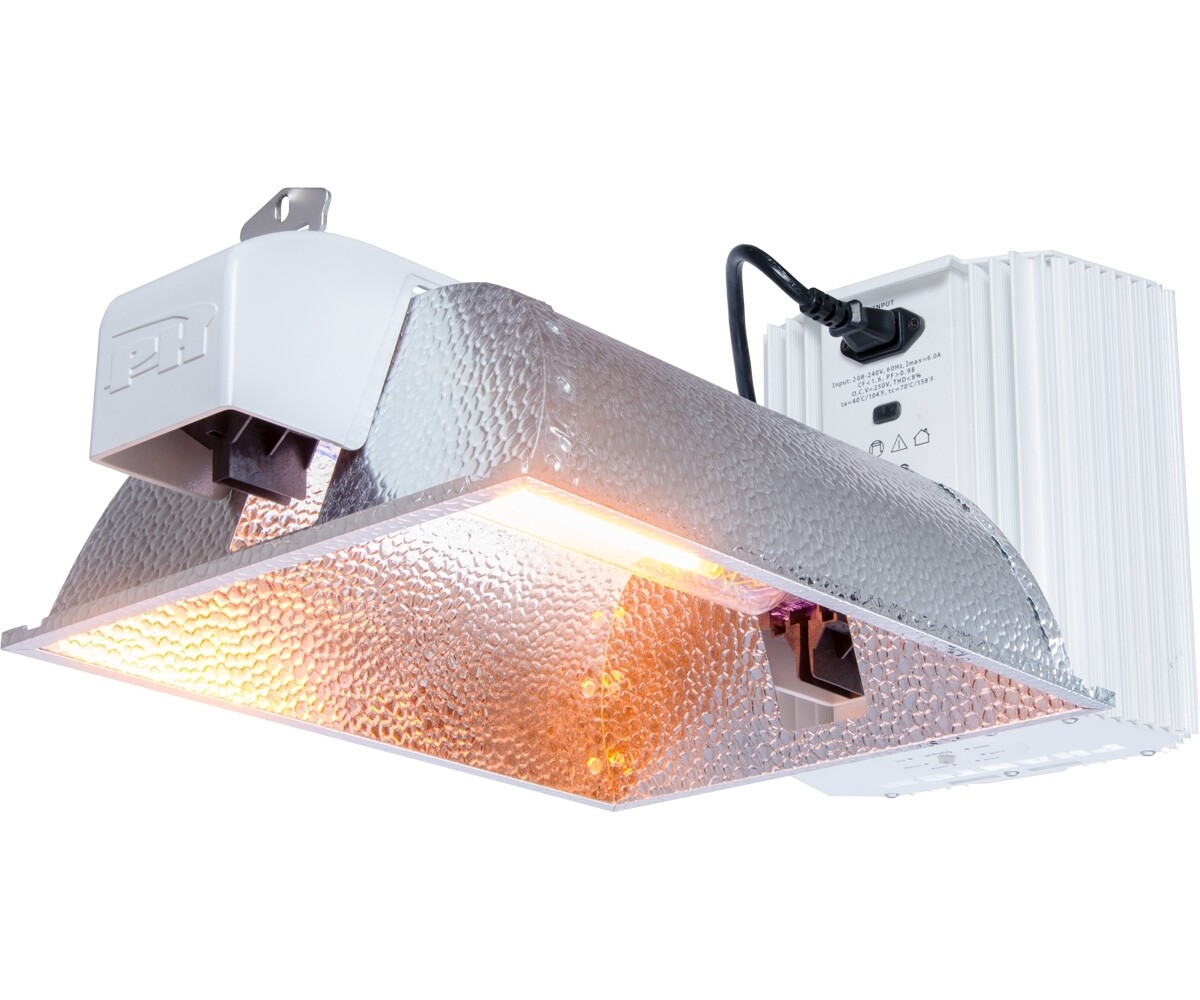

PH 50 DE Enclosed Lighting System

PH 50 Series-DE Enclosed Lighting System, 1000W, 208V/240V
Call for shipping cost to your location
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Product Details

The Commercial DE Enclosed Lighting System features state-of-the-art double-ended technology that uniformly delivers optimum PAR value over a broad footprint.

At the heart of this system is the PHB5015 Phantom Commercial DE Ballast with USB Interface. Its USB interface enables connection with the Autopilot PX Series Advanced Lighting Controllers.

PHB5015 Ballast features:

  • USB interface provides full compatibility with Autopilot PX Series Digital Lighting Controller
  • High-precision microprocessor control
  • Six-way wattage output control: 600W, 750W, 825W, 1000W, and 1150W + PX1 control mode
  • Robust commercial design
  • Superior reliability
  • LED status indicator
  • Internal RF shielding
  • Patented ignition control
  • End of lamp life signal
  • The auto-restrike feature protects valuable lamps from damaging power interruptions
  • Cooling fins for maximum heat dissipation
  • Suitable for use in damp locations
  • Features an IEC power connection and comes with an 8' 16/3 AWG power cord with EMI suppression and NEMA 6-15P plug
  • Includes 15' USB-RJ12 Controller Cable Pack

Enclosed Reflector features:

  • A double-ended system delivers a higher PAR value with excellent uniformity
  • Patented open roof design for ideal lamp operational temperature
  • Premium aluminum European hammertone interior: 99.85% pure, 95% reflectivity
  • Directs light down in a focused pattern
  • Compact design minimizes interference with the sun in greenhouse applications
  • Excellent efficiency at higher mounting heights
  • Requires fewer reflectors to meet desired light levels
  • Compounding performance in multi-light configurations
  • European-made VS K12 x 30s high-temperature lamp holders
  • Patent-pending reflector design

Specifications

Attribute nameAttribute value
Alternate Keywords50-series, PHDEKTS1 replacement
Ballast TypeElectronic
Base TypeDouble-Ended (K12x30s)
Bulb OrientationDouble Ended
Bulb(s) IncludedYes
CSA_Registration245794
Frequency60Hz
Rated Wattage1000
Height (Unboxed)10.05
Length (Unboxed)22.66
Weight (Unboxed)13.39
Width (Unboxed)11.04
Voltage240,277, 480
FCC_RegistrationYes
Barcodes638104020107 (UPC-A)
Dimensions25.4L x 16.9W x 13.4H (EA)
48.0L x 40.0W x 86.0H (PL)
Shipping Weight17.8 lbs.
